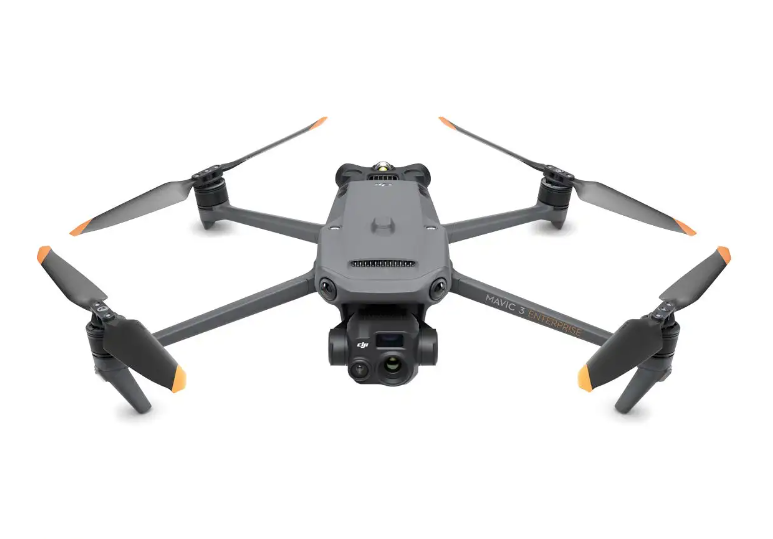

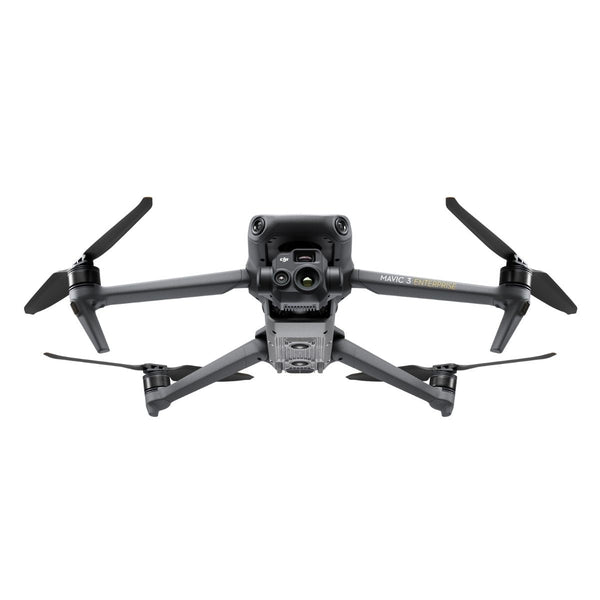

DJI Mavic 3TA: Redefining Thermal Precision in a Compact Enterprise Drone

The DJI Mavic 3 Thermal Advanced (M3TA) is a specialized aerial platform engineered for high-accuracy thermal monitoring and distant infrastructure inspections. While built on the portable and robust Mavic 3 Enterprise frame, the "Advanced" model distinguishes itself with an optimized thermal lens featuring a 41.2° DFOV and an industry-leading 8μm pixel pitch.

These enhancements allow operators to identify critical thermal anomalies with much higher clarity from greater standoff distances than standard thermal drones. Combining a 48MP wide-angle camera, a 56× hybrid zoom telephoto camera, and a 640 x 512 radiometric thermal sensor, the M3TA provides a comprehensive triple-camera solution.

This portable powerhouse is designed for professionals who require elite-level thermal resolution in a rapidly deployable form factor.

Mavic 3 Thermal Advanced core features

• Precision thermal optics: Refined 8μm pixel pitch delivers superior spatial resolution for distant targets
• Enhanced focal length: 60mm equivalent thermal focal length provides a narrower, high-detail field of view
• Triple-camera array: Integrates 48MP wide, 12MP telephoto, and 640 x 512 thermal sensors
• Synchronized monitoring: Supports side-by-side 28× digital zoom for simultaneous visual and thermal comparison
• Extended mission time: Achieves up to 45 minutes of flight for thorough large-scale data collection
• All-around safety: Omnidirectional obstacle sensing and APAS 5.0 enable confident flight in complex areas
• Elite controller: Includes the DJI RC Pro Enterprise with a built-in high-brightness touchscreen
• Modular flexibility: Top-mounted port allows for rapid attachment of RTK or loudspeaker modules
• Extreme range: DJI O3 Enterprise transmission maintains stable HD feeds up to 15 km away
• NOTE: Does not include DJI Care Enterprise coverage

Elite thermal clarity and tactical mission efficiency

The Mavic 3 Thermal Advanced provides an unparalleled advantage in scenarios where standoff distance and detail are paramount. The optimized 8μm pixel pitch allows the sensor to capture sharper thermal details, making it significantly easier to identify overheating components or search targets from higher altitudes.

For tactical operations, the side-by-side zoom feature enables pilots to compare thermal and visual data in real-time at up to 28× magnification, ensuring no detail is overlooked during a mission. Integrated with DJI Pilot 2, the system provides immediate access to radiometric tools like isotherms and temperature alerts, allowing for instant decision-making in the field without the need for immediate post-processing.

Hardware, software, and SDK compatibility

• Modular attachments: Directly supports the M3E RTK Module and M3E Loudspeaker
• Mission software: Native integration with DJI Pilot 2, FlightHub 2, and DJI Terra
• Development support: Accessible via PSDK and MSDK for tailored enterprise software solutions
• Accurate positioning: Compatible with optional RTK hardware for centimeter-level metadata
• Global navigation: Utilizes GPS, Galileo, BeiDou, and GLONASS for stable flight
• Storage requirements: Optimized for V30 or higher microSD cards for high-bitrate data

Operational use cases

• Infrastructure inspection: Detect overheating joints on high-voltage power lines from safe distances
• Search and rescue: Identify heat signatures in dense terrain using high-resolution long-range thermal
• Firefighting: Monitor fire spread and locate active hotspots through smoke and debris
• Solar farm maintenance: Quickly pinpoint defective cells across large arrays using side-by-side zoom
• Law enforcement: Conduct covert nighttime surveillance with silent, high-magnification thermal imaging
• Roofing assessments: Identify moisture entrapment and insulation leaks via precise temperature anomalies
• Environmental monitoring: Track wildlife heat signatures without disturbing natural behavior

Optimized for operational readiness

The Mavic 3 Thermal Advanced serves as a definitive solution for teams that refuse to compromise on thermal resolution while maintaining a small equipment footprint. By improving spatial detail at the sensor level, this aircraft reduces the need for low-altitude flying, thereby increasing safety and broadening the scope of what a compact drone can achieve. It bridges the gap between portable drones and large-scale industrial sensors, providing a high-fidelity thermal perspective that is ready to deploy in seconds.

DSLRPros is dedicated to providing the specialized equipment and technical training necessary for your team to master high-stakes thermal operations. We focus on delivering complete UAV lifecycles that integrate advanced sensors like the M3TA into your existing professional workflows with ease.

Enhance your long-range diagnostic capabilities by adding the DJI Mavic 3 Thermal Advanced to your fleet through DSLRPros.
