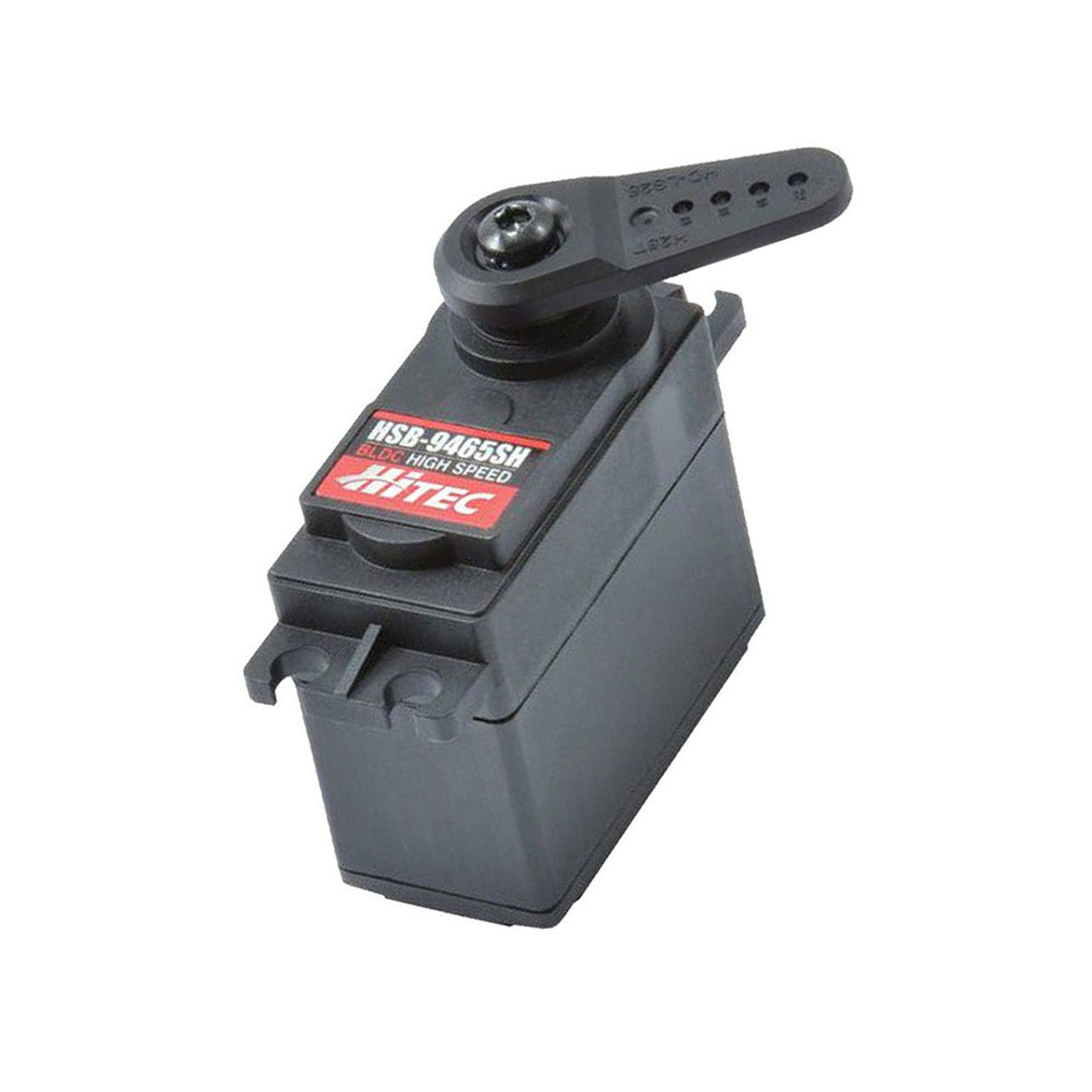

This is the Hitec HSB-9465SH Digital High Speed Brushless Steel Gear High Voltage Servo, with an included PAD (Power Absorbing Device). This servo is ideal for 1/10 scale on-road cars and 600+ size helicopters.
Pro level hobbyists demand the power and precision found in the Hitec triple threat HSB-94XX servos. Each one is designed with durable steel gears and impressive Neu brushless motors with the HSB-9465SH bringing lightning speed.
Features:
Programmable 12 Bit Digital Circuit: Using the DPC-20 programmable software, users can program a variety of features in the HSB-9XXX Series including: Fail Safe On/Off and Position, direction, EPA, Speed (Slower), dead Band, and Soft Start.
Power Efficient Brushless Motor Controller: Energy efficiency is a common interest for all modelers. The HSB-9XXX Series uses the latest control circuit technology including a regenerative braking circuit which puts power back into the battery as the motor slows. This feature, combined with ultra-low current draw under sustained loads, allows Hitec brushless servos to consume 1/5 the power of most other brushless servos on the market today
Custom Brushless Motor: Designed by Steve Neu exclusively for the HSB-9XXX Series, these high performance, brushless motors provide longstanding durability and performance.
Constant Torque Output: Thanks to the revolutionary circuit and motor designs, the HSB-9XXX Series maintain their speed in a more consistent manner, regardless of load.
Hybrid MPD 1st Gear: The unique ultra-durable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle.
Industry-Leading Titanium Gear Train: Hitec was the first manufacturer to utilize low wear Titanium gears in their servos and continues to be the leader in Titanium gear technology.
25-Tooth Standard Spline: These Brushless servos utilize a standard 25 tooth output spline for maximum compatibility with a wide range of aftermarket servo horns.
Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Data Save / Load
Program Reset (From File)
General Specifications
Operating Voltage Range 4.0 ~ 8.4V
Voltage - 6.0V 7.4V
No Load Speed - 0.09sec/60˚ 0.07sec/60˚
Stall Torque - 13.5kgf·cm (187.5 oz·in) 13.5kgf·cm (187.5 oz·in)
Peak Efficiency Torque - 2.7kgf·cm (37.5 oz·in) 2.7kgf·cm (37.5 oz·in)
Standing Current - 30mA 30mA
No Load Running Current - 250mA 250mA
Stall Current - 1,100mA 900mA
Deadband - 1μs 1μs
Continuous Rotation n / a
Connector Wire Length 300mm (11.811 in.)
Connector Wire Gauge 20AWG
Dimensions 40.0 x 20.0 x 37.7mm (1.575 x 0.787 x 1.484 in.)
Weight 62.0g (2.1887oz)
Motor Type Brushless (BLDC)
Bearing Type 2 Ball Bearing
Case Material Engineering Plastic
Gear Material 1 Metal+Plastic & 3 Steel Gears
Horn Gear Spline 25T (Ø6.0)
IP-Rating IP54
Servo Amplifier Type 16bit Programmable Digital
Radio Control Applications
Parkflyer n / a
Sport Plane 12-15 lbs.
Sailplane 2 Meters and up
3D Performance 12-15 lbs.
Giant / Large Scale 12-15 lbs.
On Road 1/10th & Losi Promoto 1/4th
Monster Truck 1/10th
Buggy 1/10th
Truggy 1/10th
Short Coarse / Truck 1/10th
Crawler n / a
Electric Heli > 700
Gas Heli 90+
Sail Boat > 1M & Scale
Power Boat 1/10th
