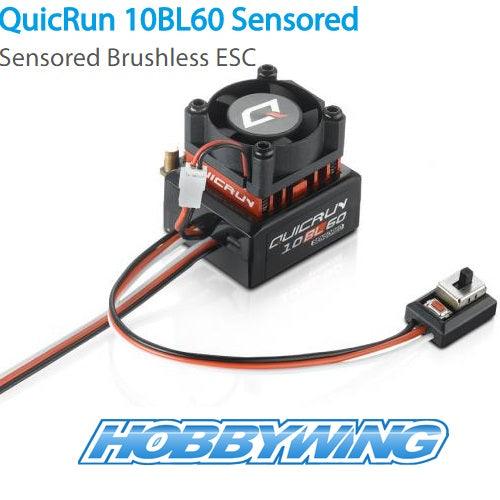

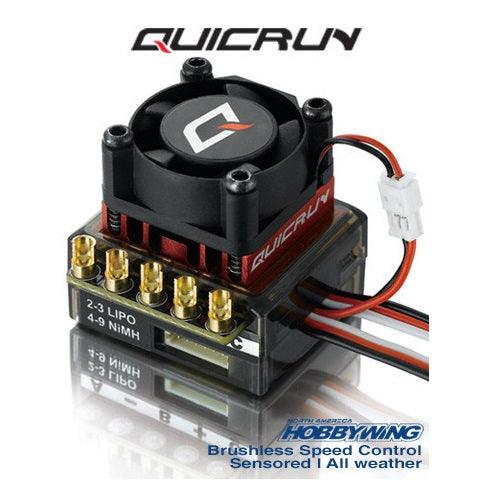

Hobbywing Quickrun 10BL60 Sensored Brushless ESC 2-3S Lipo 1/10 1/12 Scale

QUICRUN-10BL60-SENSORED ESC (1/10, 1/12)

Specifications

• Cont. / Peak Current / Resistance: 60A / 380A / 0.0008 Ohm
• Motor Type Supported: Sensored / Sensorless Brushless Motor
• Motor Limit:
• 4-6 cells NiMH/2S Lipo: 8.5T(1/10 On-road), 13.5T(1/10 Off-road)
• 8-9 cells NiMH/3S Lipo: 13.5T(1/10 On-road), 17.5T(1/10 Off-road)
• Battery: 4-9 cells NiMH, 2-3S Lipo
• BEC Output: 6V@2A

Features:

High performance but low price, users can own this reliable race-ready ESC at an affordable cost.
Compact size, suitable for various car chassis.
Auto identification system can recognize sensored / sensorless brushless motors automatically.
Excellent operating feelings and plentiful adjustment options, suitable for most kinds of competitions.
8 steps of timing adjustment greatly increase the output power of the motor, and unlock its maximum potential.
Proportional brake with 4 steps of Maximum Brake Force adjustment, 8 steps of Drag Brake Force adjustment and 4 steps of Initial Brake Force adjustment.
9 steps of acceleration (punch) adjustment, from "soft" to "very aggressive" to fit for different kinds of cars, tires and tracks.
Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection / Motor Lock-up protection.
One-button (the "SET" button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.

Technical Specs:

Model / SKU
QUICRUN-10BL60 Sensored / 30105060003
Cont./Peak Current/ Resistance 60A/380A/0.0008Ω

Motor Type Supported Sensored / Sensorless Brushless Motor
Car Applicable 1:10 On-road/Off-road/Buggy/Monster

Motor Limit For 2S LiPo or 4-6 cell NiMH:
≥8.5T(1/10 On-road), ≥13.5T(1/10 Off-road) *Note 1

For 3S LiPo or 8-9 cell NiMH:
≥13.5T(1/10 On-road), ≥17.5T(1/10 Off-road) *Note 1

Battery 4-9 cell NiMH, 2-3S LiPo
BEC Output 6V/2A (Linear Mode)
Size/ Weight 33mm(L)*28mm(W)*31.5mm(H, with cooling fan)
59g (with wires, without cooling Fan)
External Program Port Available
