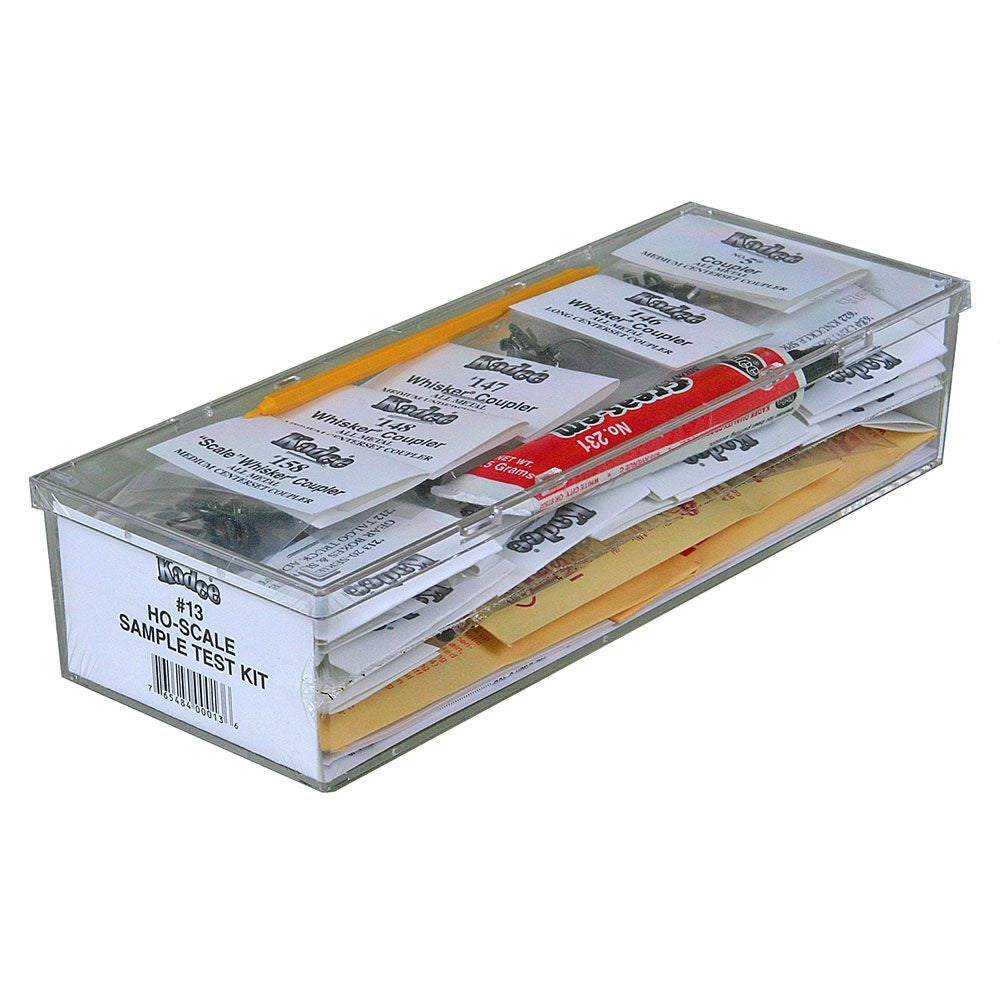

kadee #13 HO Scale Coupler Sample Test Kit.

The sample test kit contains a variety of sample couplers and other necessary components to identify and properly install Kadee® couplers on locomotives & rolling stock. Without having to purchase full size packages of Couplers, Gear Boxes & Adaptors, Springs, Washers, & Shims that may be necessary for the Coupler Conversions.

Contains: HO-Scale Conversion list, 20 & 30 Series Instructions, Whisker Coupler Instructions & sample size packages of products listed below.

Couplers - Metal
NO.5® Medium Centerset - Metal - One Pair
141 Whisker® Long Underset - Metal - One Pair
142 Whisker® Medium Overset - Metal - One Pair
143 Whisker® Short Centerset - Metal - One Pair
144 Whisker® Short Underset - Metal - One Pair
145 Whisker® Short Overset - Metal - One Pair
146 Whisker® Long Centerset - Metal - One Pair
147 Whisker® Medium Underset - Metal - One Pair
148 Whisker® Medium Centerset - Metal - One Pair
149 Whisker® Long Overset - Metal - One Pair
158 Whisker® "Scale" Medium Centerset - Metal - One Pair

Couplers - Plastic
21/31 Long Underset - Plastic - One Pair
22/32 Medium Overset - Plastic - One Pair
23/33 Short Centerset - Plastic - One Pair
24/34 Short Underset - Plastic - One Pair
25/35 Short Overset - Plastic - One Pair
26/36 Long Centerset - Plastic - One Pair
27/37 Medium Underset - Plastic - One Pair
28/38 Medium Centerset - Plastic - One Pair
29/39 Long Overset - Plastic - One Pair

Gear Boxes & Adaptors
212 Talgo Truck Adaptors: - One Sprue
Work with all Couplers included in Test Kit and are standard with 20-Series couplers.
213 20-Series Gear Box with Sleeves: - One Sprue
Work with all Couplers included in Test Kit and are standard with 20-Series couplers.
232 NO.5® Type Gear Box: - One Sprue
Work with all Couplers included in Test Kit and are standard with NO.5® couplers & 20-Series couplers.
233 30-Series Gear Box: - One Sprue
Work with all Couplers included in Test Kit Except Whisker® Couplers and are standard with 30-Series couplers.
234 Short NO.5® Type Gear Box: - One Sprue
Work with all Couplers included in Test Kit and are standard with short shank 20-Series & 40-Series couplers.
242 Whisker® Snap-Together Gear Box: - One Sprue
Work with all Couplers included in Test Kit and are standard with Whisker® couplers.
252 Small Whisker® Snap-Together Gear Box: - One Sprue
Work with Only Whisker® Couplers. The 252 is the Whisker® equivalent to the 30-Series Gear Box.

Screws, Springs, Washers, & Shims
208 .015" Red Fiber Washer - 10 Each
209 .010" Gray Fiber Washer - 10 Each
211 .010" & .015" Shims - 10 Each
256 Plastic 2-56 x 1/2" Screws - 10 Each
621 30-Series Torsion Spring - 10 Each
622 Knuckle Springs - 10 Each
634 NO.5® Type Centering Spring - 10 Each

Uncouplers
321 Code 100 Between-The-Rails - One Pair
322 Code 83 Between-The-Rails - One Pair

Tools
231 Greas-em - One Each
206 Coupler Height Gauge - One Each
241 Dual Tool - One Each
