Building on the success of the HYDRA COBRA 5, Castle is excited to announce the release of the HYDRA COBRA 6, the ultimate enhancement that propels high-performance monohulls, up to 36 inches in length, to new heights.

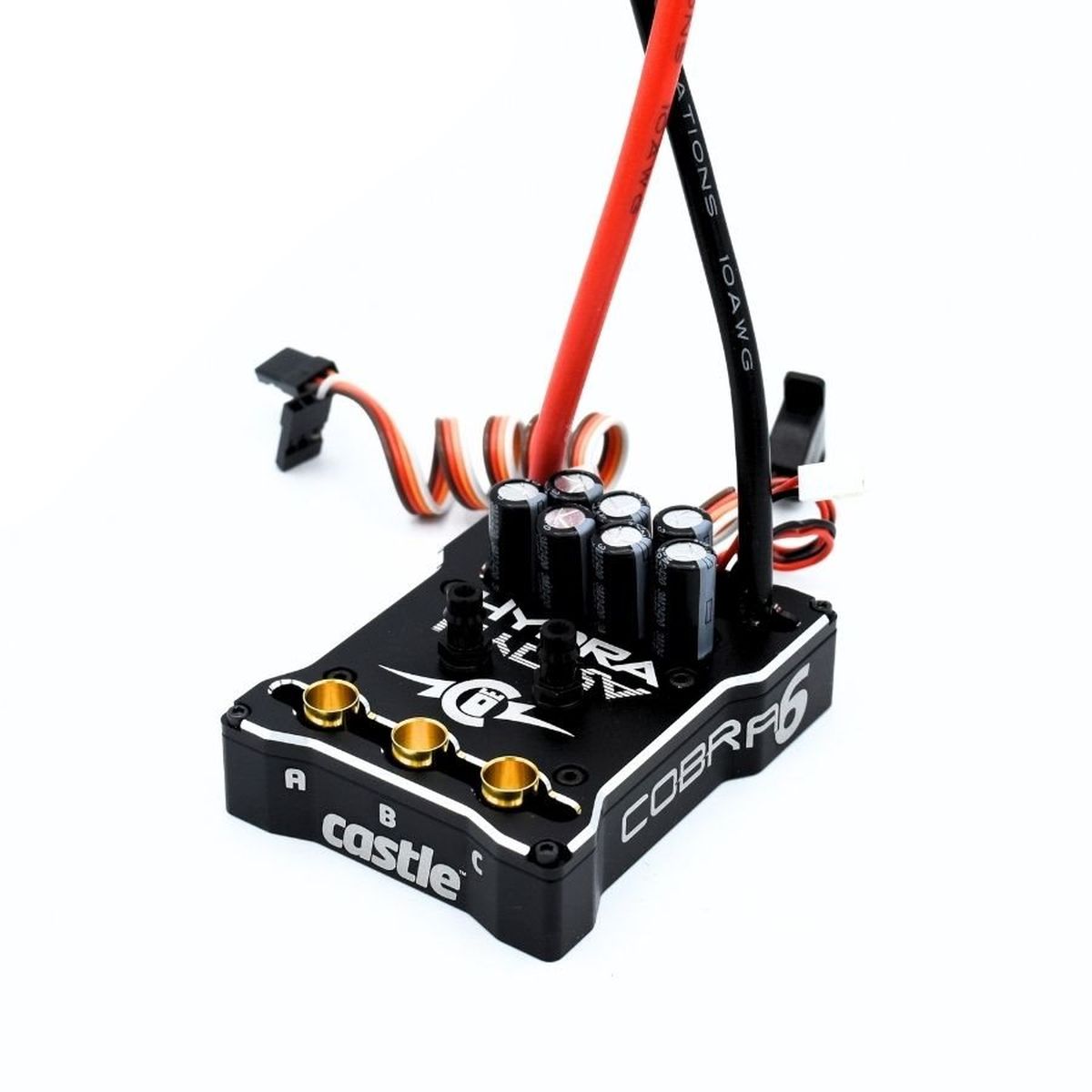

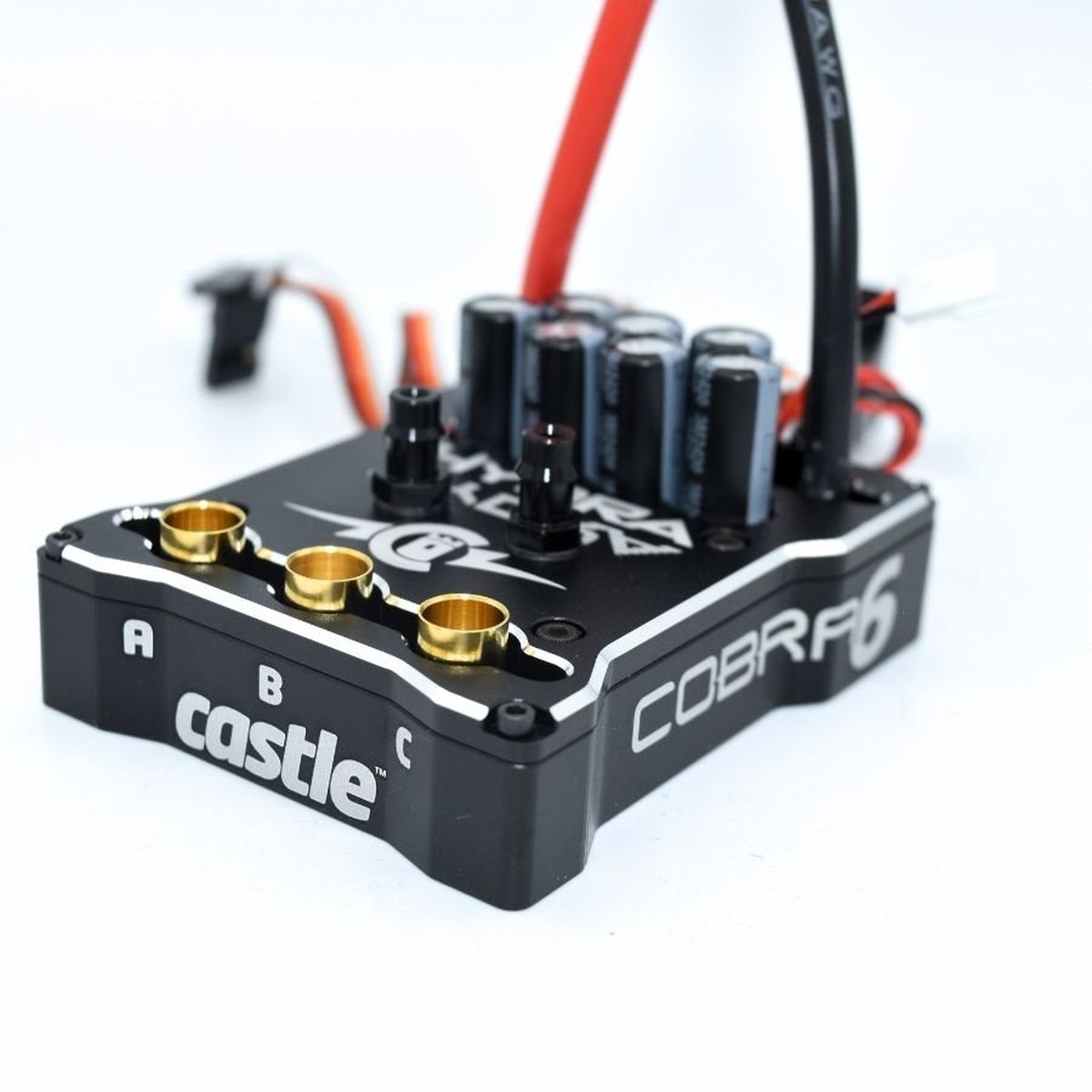

This marine-focused ESC features a custom water-cooled heatsink for efficient thermal management and an aluminum top plate with dual anodized water fittings (.17" OD, 10-32 UNF threads). The ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and includes an upgraded current-sensing and thermal protection system actively mitigates the risk of failure in aggressive or high-load setups.
Access to tuning options, data logs, and firmware updates for the COBRA SERIES ESCs is available at no charge using the Castle Link V4 USB adapter included in the box and Castle Link 2 software, available for download on the Castle Creations website.
The HYDRA COBRA 6 is packed with a potent combination of hardware and software advancements, making it an indispensable ally in high-performance power systems. Users will benefit from the same footprint as its predecessor, the Hydra X 8S, while an upgraded current-sensing and thermal protection system actively mitigates the risk of failure in aggressive or high-load setups.
NOTE: Due to the high-power nature of the Hydra Cobra 6, you must use appropriately sized batteries and connectors. Castle recommends a minimum 130-amp connector for the Hydra Cobra 6; examples include Castle 6.5mm polarized, EC8 and QS8. DO NOT USE XT90, Traxxas, EC5/IC5 or any other connectors rated below 130 amps continuous.
Includes:
- Hydra Cobra 6 ESC
- Cobra decals
- Castle Link V4 USB Adapter
- Hydra Cobra Quick Start Guide
- Hydra Cobra 6 ESC
- Cobra decals
- Castle Link V4 USB Adapter
- Hydra Cobra Quick Start Guide
Features:
- 32-Bit processing power for smoother motor control and improved response time.
- Enhanced Data Logging includes: / Double the maximum sample frequency of older generations. / 8x increased logging time of older generations. / ESC electrical motor timing data. / Acceleration data via onboard accelerometer. / Looping feature prevents interruptions in data log recording.
- Additional tuning features include: Improved braking adjustability / Separate brake and reverse curves / Highly adjustable internal BEC (5.0V - 8.5V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase.
- Optional smartphone-based programming with the B-LINK 2 Bluetooth Interface (sold separately) and free Castle Link 2 app available on Google Play or Apple App Store.
- Upgraded current-sensing and thermal protection system actively mitigates the risk of failure in aggressive or high-load setups.
Specifications:
- Application Guidelines: RC Hobby boats up to 36" (Ideal for Proboat Impulse 32", Proboat Sonicwake 36", Traxxas Spartan, Traxxas M41 Caamaran)
- Input Voltage Range: MIN: 2S LiPo, MAX: 8S LiPo 33.6V
- Running Modes: Sensorless, Brushed and SmartSense when paired with a Castle 4-Pole Sensored Motor.
- Brake: Available but disabled by default.
- Reversible: Available but disabled by default.
- On/Off Switch: Yes, waterproof
- Water cooling fittings: Two .17" fittings included. Uses 10-32 UNF threads.
- Size: Length: 69.5mm / Width: 54.1mm / Height: 24.7mm
- Weight (with wires): 155.5 grams / 5.49 oz / .34 lbs
- Continuous current rating: 140A
- Burst current rating: 280A
- Motor Connectors: 6.5mm female bullets on circuit board, matching 6.5mm male bullets for motor required (not included)
- Items Needed for Operation: The Hydra Cobra 6 requires the use of connectors designed for 130 amps continuous, such as Castle 6.5mm polarized or CC BULLET 8.0MM, QS8 8mm Anti Spark or QS10 10mm Anti Spark. You will also need 6.5mm male bullets for the motor connections.
- Operating environment: All weather conditions (See Operating Environment Considerations)
- Programmability: Access to tuning options and firmware updates for free with Castle Link V4 USB adapter included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
- Tech Tips: If replacing the water-cooling fittings, it is recommended to use Loctite 545 (or similar) on the threads. This will ensure a watertight, 25+ PSI strong seal.
- Operating Environment Considerations: Although Hydra Cobra 6 is waterproof, it is not intended for operation while completely submerged in liquid. / Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. / The receiver harness and sensor harness connections at the board can be affected by water. While most boat hulls are watertight, water can find its way in. Applying dielectric grease to these connections can prevent corrosion and signal interruption if these connections are exposed to water.
