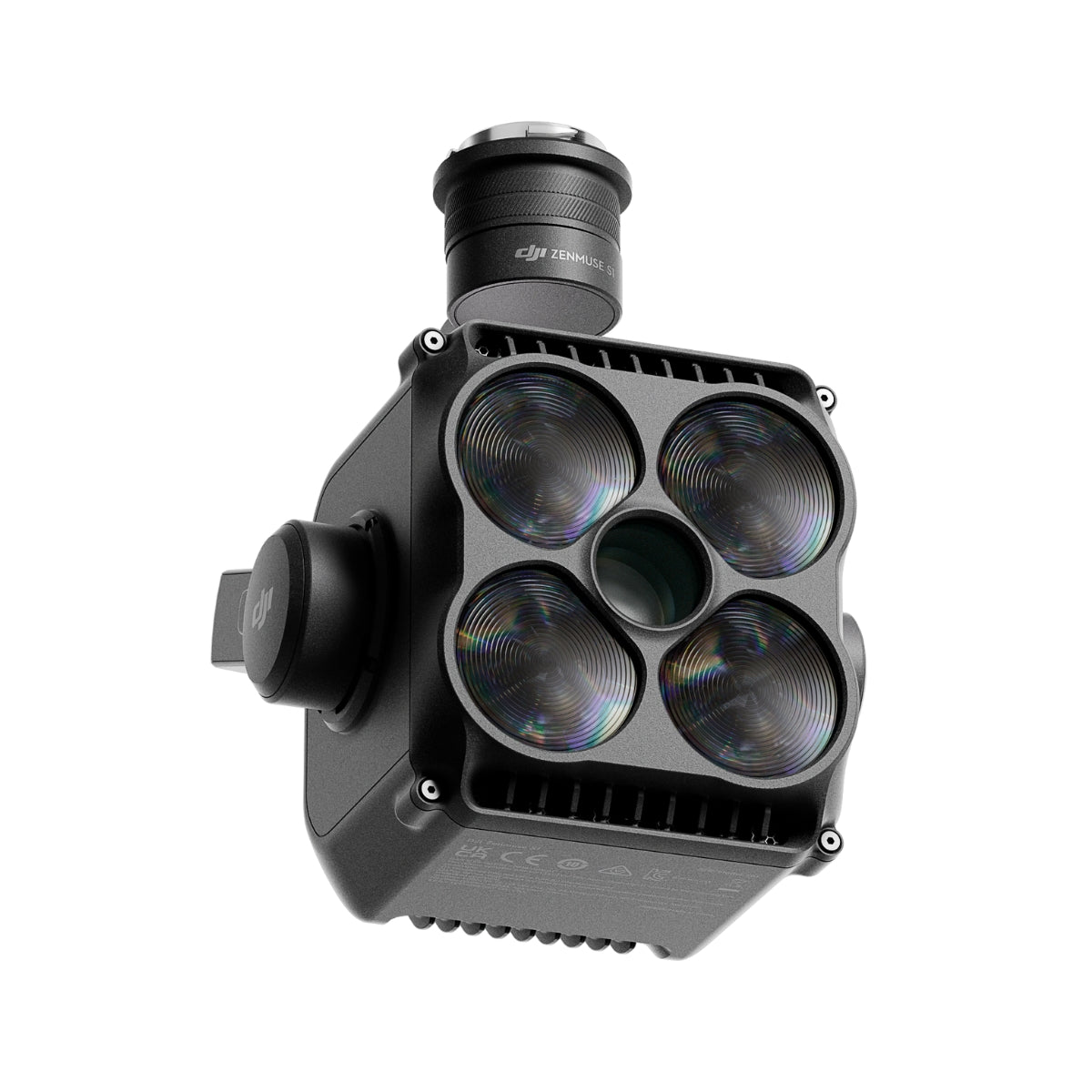

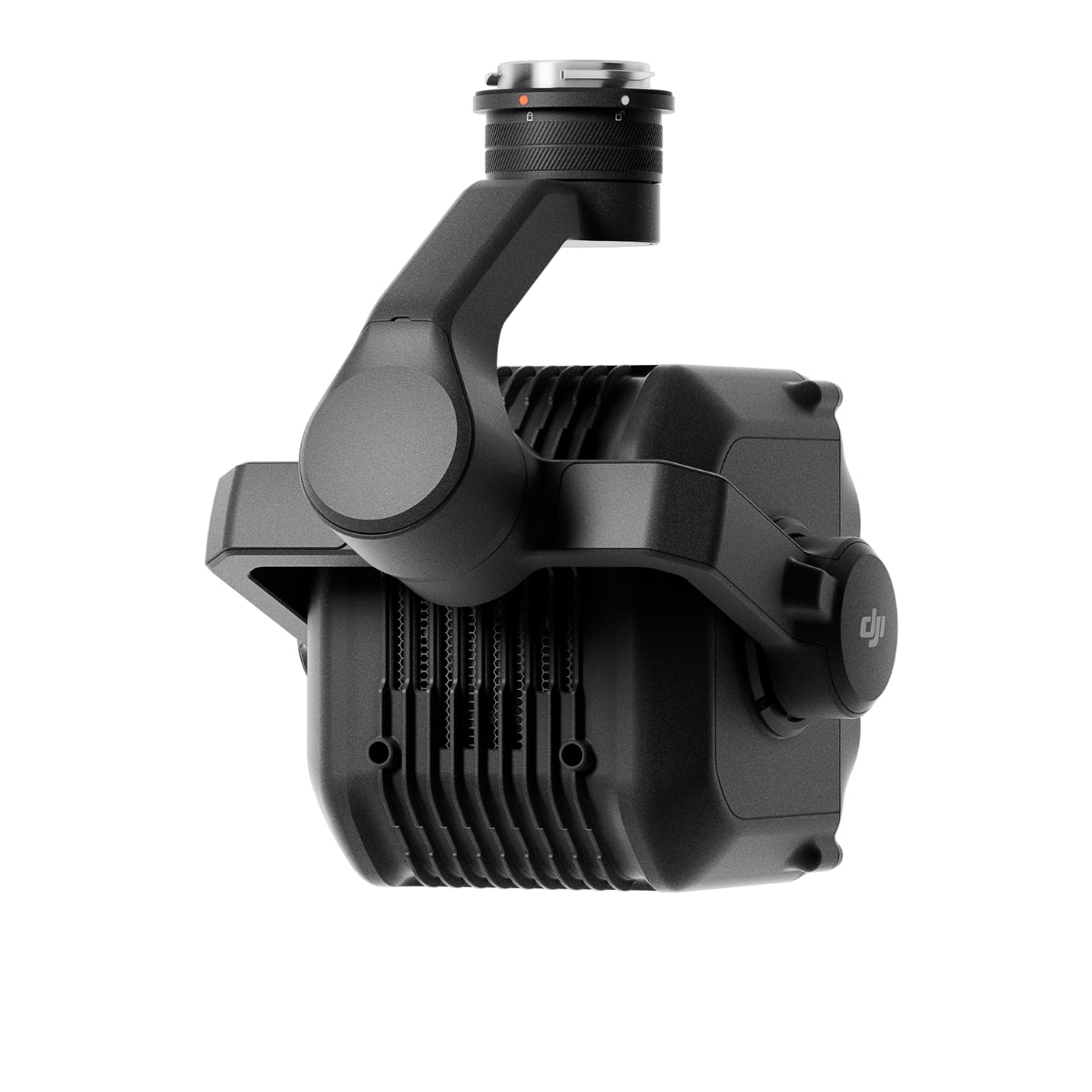

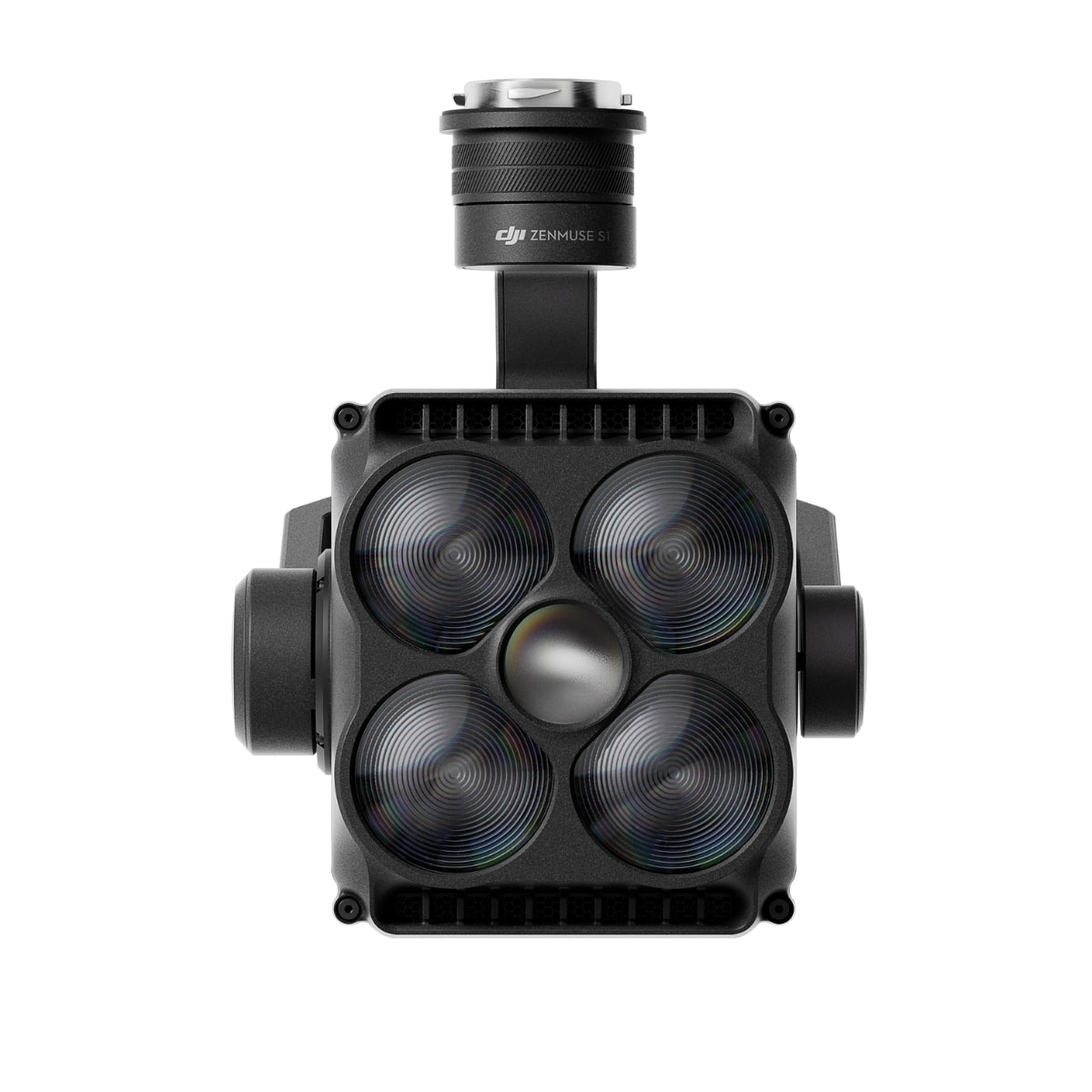

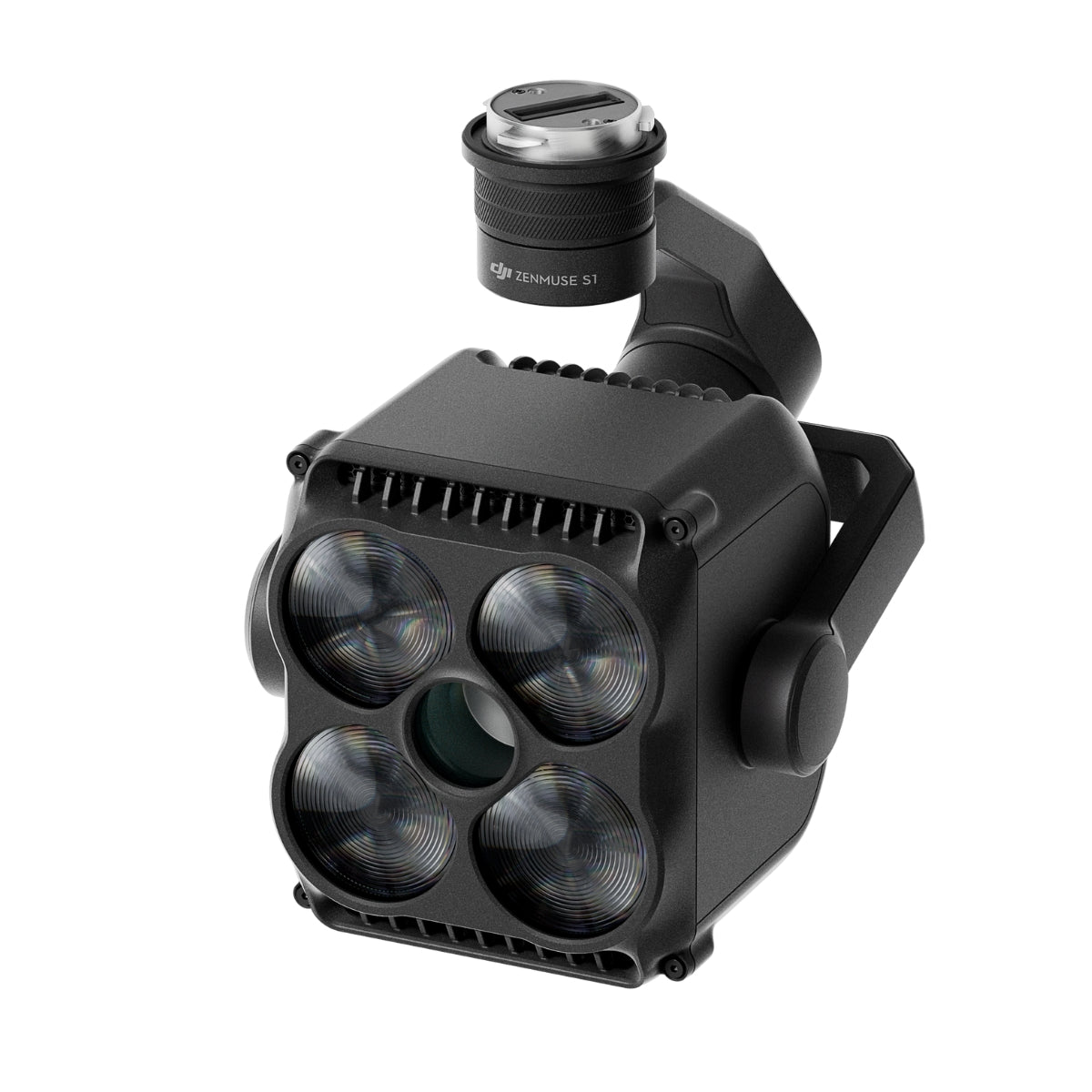

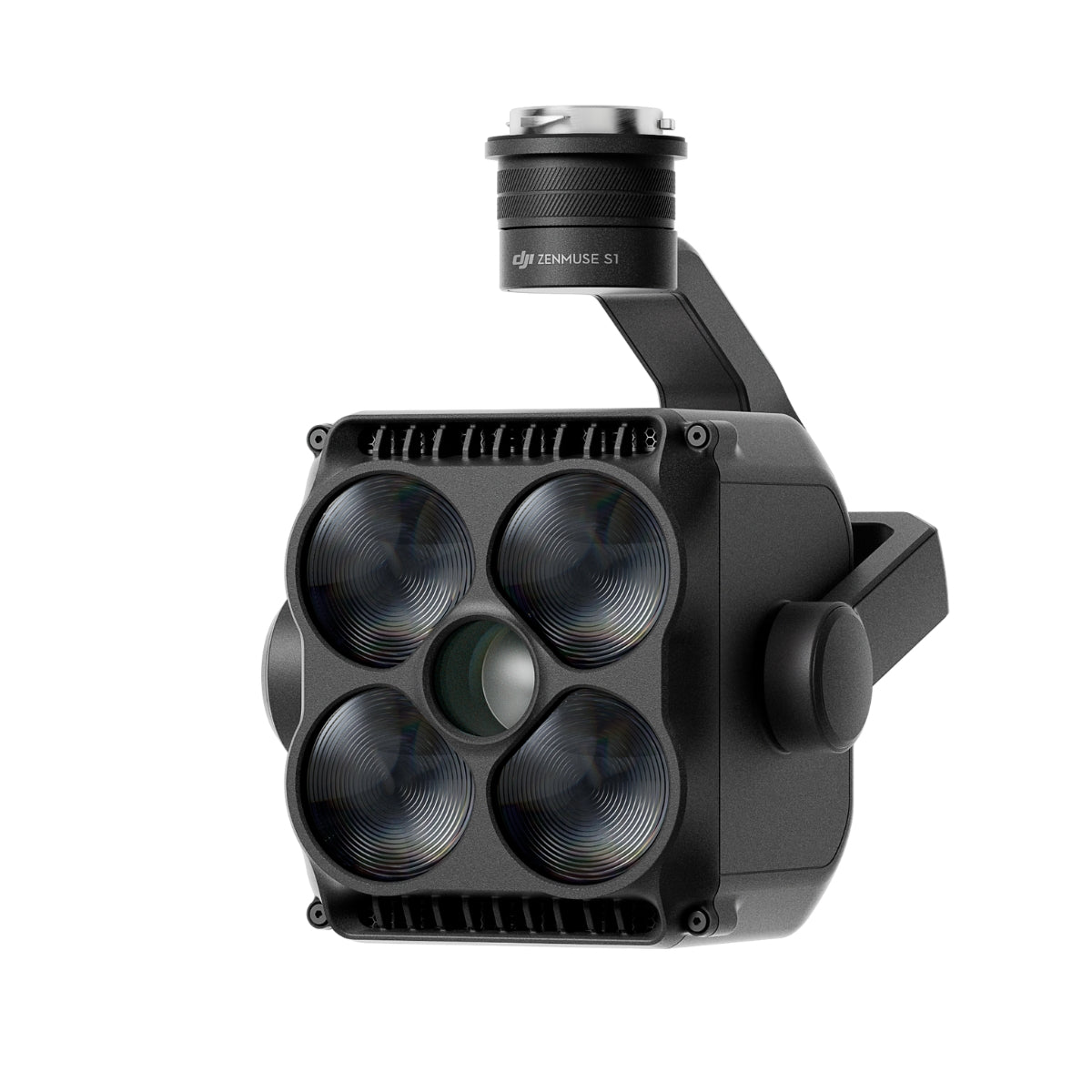

Zenmuse S1: High-Intensity Laser Phosphor Aerial Spotlight

The Zenmuse S1 is DJI's premier spotlight payload engineered specifically for professional multi-payload drone platforms including the Matrice 400 and Matrice 350 RTK. Utilizing advanced Laser Excited Phosphor technology, this 0.76 kg (1.68 lbs) unit delivers a powerful 40 lux central illuminance at a 100-meter (328 ft) distance. Designed for high-stakes nighttime operations, it provides critical visibility for search and rescue, law enforcement, and industrial inspections. With an IP54 rating and specialized lighting modes, the S1 ensures that darkness never compromises the safety or efficiency of enterprise aerial missions.

Zenmuse S1 core features and advantages

• LEP technology: Advanced laser phosphorus light source ensures superior long-range penetration.
• 500m illumination: Maximum observation distance reaches up to 500 meters (1,640 ft).
• 40 lux brightness: High-intensity central illuminance provides clear detail in total darkness.
• Energy efficient: Consumes only 24 W in high beam mode for flight.
• Four lighting modes: Versatile low, high, both on, and strobe lighting options.
• Intelligent alignment: Automatically calibrates optical center with camera view in real time.
• IP54 protection: Dust and water resistance enables operation in challenging weather environments.
• Lightweight build: Compact 0.76 kg design fits easily into enterprise carrying cases.

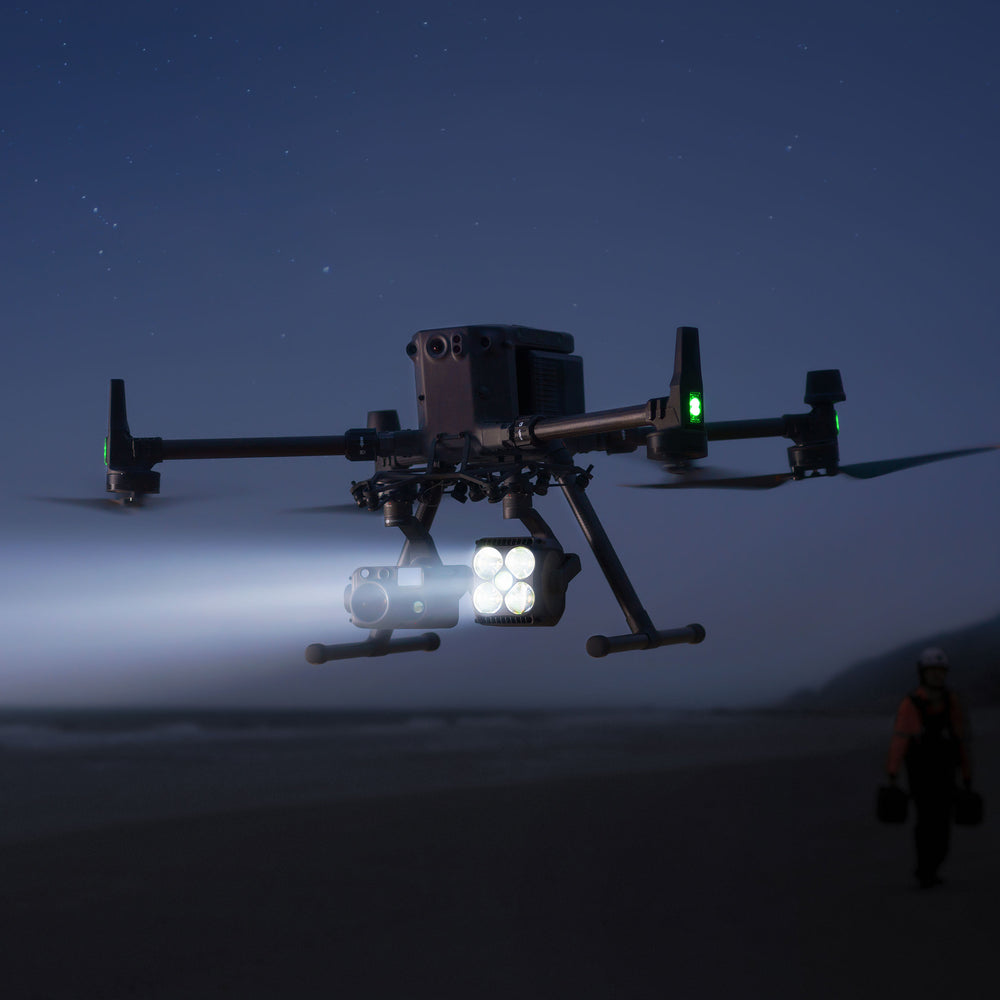

Professional nighttime performance for critical enterprise operations

The Zenmuse S1 delivers exceptional performance by combining high-intensity illumination with intelligent power management. Its Laser Excited Phosphor technology allows for a concentrated 4° high beam that can pierce the night up to 300 meters (984 ft), perfectly complementing high-zoom camera payloads. When both beams are engaged, operators gain maximum situational awareness with a 500-meter (1,640 ft) reach. The system is designed to minimize power load on the aircraft, ensuring that mission critical flight times are maintained while providing the necessary light to identify targets or inspect infrastructure.

Platform and software integration

• DJI Matrice 400: Supports dual S1 mounting and intelligent beam alignment.
• Matrice 350 RTK: Quick-release installation on any available gimbal connector port.
• Matrice 300 RTK: Fully compatible with enterprise-grade firmware and hardware interfaces.
• Zenmuse H30 Series: Synchronized control for real-time camera and light alignment.
• DJI FlightHub 2: Enables remote video viewing and spotlight control for teams.
• Mobile SDK: Supports rapid integration into custom developed mobile applications.
• Payload SDK: Compatible with Manifold 3 for advanced specialized mission requirements.

Operational use cases

• Search and rescue: Illuminating large ground areas to locate missing persons quickly.
• Public safety: Providing continuous visual overwatch during nighttime law enforcement patrols.
• Emergency signaling: Utilizing high-frequency strobe mode to alert or draw attention.
• Infrastructure inspection: Lighting utility towers for detailed structural assessments in darkness.
• Disaster response: Coordinating ground and air operations through DJI FlightHub 2.
• Site security: Enhancing perimeter monitoring of industrial facilities during night shifts.

Optimized for operational readiness

The Zenmuse S1 is built for professional system integration, allowing it to function as a seamless extension of the drone platform. Because it can be mounted on any gimbal connector, it provides pilots with total flexibility for complex multi-payload configurations. The inclusion of intelligent protection mechanisms for temperature and overcurrent ensures the payload remains reliable over hundreds of hours of flight. Furthermore, the burn protection casing maintains a surface temperature below 50° C (122° F), prioritizing the safety of operators during rapid equipment swaps or post-flight handling in the field.

The Zenmuse S1 provides a robust illumination solution for aerial professionals who must operate with total confidence in low-light environments. By integrating high-output LEP technology with intelligent gimbal synchronization, it ensures that every night mission is conducted with maximum visibility. This payload consistently solves the problem of target identification and situational awareness during critical nighttime enterprise operations.
