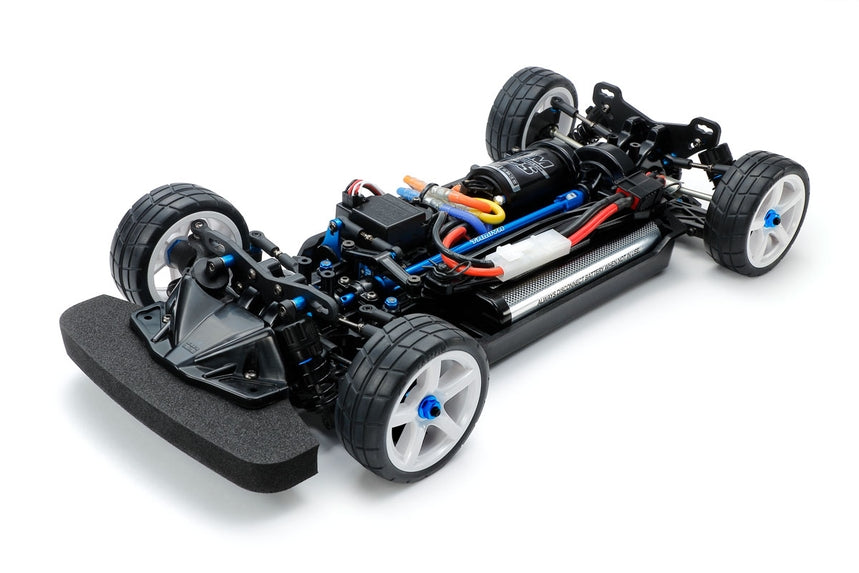

The TT-02 Type-SRX chassis kit is an upgraded version of the TT-02 Type-S Series with enhanced durability and performance for racing. This chassis kit uses Items 22049 and 22047 with updated parts. Also, parts included in this chassis kit were chosen for users who want to learn setup before levelling up to mid-level Tamiya chassis kits. (More cost-effective than buying each part separately)
NOTE: Item is sold as a kit and requires assembly, tools, and paint, and additional components to complete
Required to Complete:
- 2-channel radio
- Steering servo
- ESC
- 540 Motor
- 7.2-7.4volt battery with compatible charger
- Body
- Tires
Included Hop-up Option Parts:
- 22054: 37mm Drive Shafts for Double Cardan Joint Shafts (2pcs.)
- 22049: XV-02/TT-02 Oil Gear Differential Unit
- 22047: XV-02/TT-02 Front Direct Coupling Set (39T)
- 54981: 06 Module Hard Coated Aluminum Pinion Gear (27T)
- 54886: TRF419 Suspension Upgrade Set
- 54799: TT-02 Hi-Torque Servo Saver Set (w/Aluminum Horn)
- 54501: TT-02 Aluminum Propeller Shaft
- 54500: TT-02 High Speed Gear Set (68T)
- 53823: Clamp Type Aluminum Wheel Hub (5mm Thick)
- 53576: TRF Damper Oil Seal (4pcs.)
- 42357: Cross Joints for Low Friction Assembly Universal Shafts
- 42323: Short Ball Connector Nuts for TRF Dampers (8pcs.)
- 42143: 4mm Aluminum Serrated Wheel Nut (4pcs. /Blue)
Features:
- The rear oil-filled diff gear unit and front direct spool ensure ease of assembly and stable drivability.
- Diff. joint cups are lightweight aluminum and give a weight reduction of 7.8g compared to Item 22049's standard ones.
- Direct cups are designed for this chassis kit for improved durability.
- This chassis kit features dependable 4-wheel independent double wishbone suspension from Item 42345 (1/10 R/C TRF420 Chassis Kit) for effective setup options.
- Newly shaped propeller joints are compatible with swing shaft protectors. These parts use plastic parts at joint sections with stainless pins and aluminum joints to limit wear of parts.
- Uses Item 22054 37mm Drive Shafts which allows stable steering and cornering for superior performance at races.
- Rear drive shafts are 39mm size which are specific for this chassis. These also have a hard coat to enhance durability and lubricity.
- High speed gears and 27T pinion gears (gear ratio: 6.55: 1) are included as the kit-standard parts.
- Included TT-02 hi-torque servo saver allows steering angle limit to prevent damage of steering servo.
- Includes full ball bearings.
- Comes with a carrying case dedicated for the TT-02 Type-SRX chassis.
- The kit comes with a hi-torque servo saver as standard, to help protect the servo and steering linkage from damage.
- TRF420 design suspension arms and uprights are employed, with durable cardan drive shafts.
- Dampers have a choice of three each of upper and lower attachment points: fine-tune to your heart's content!

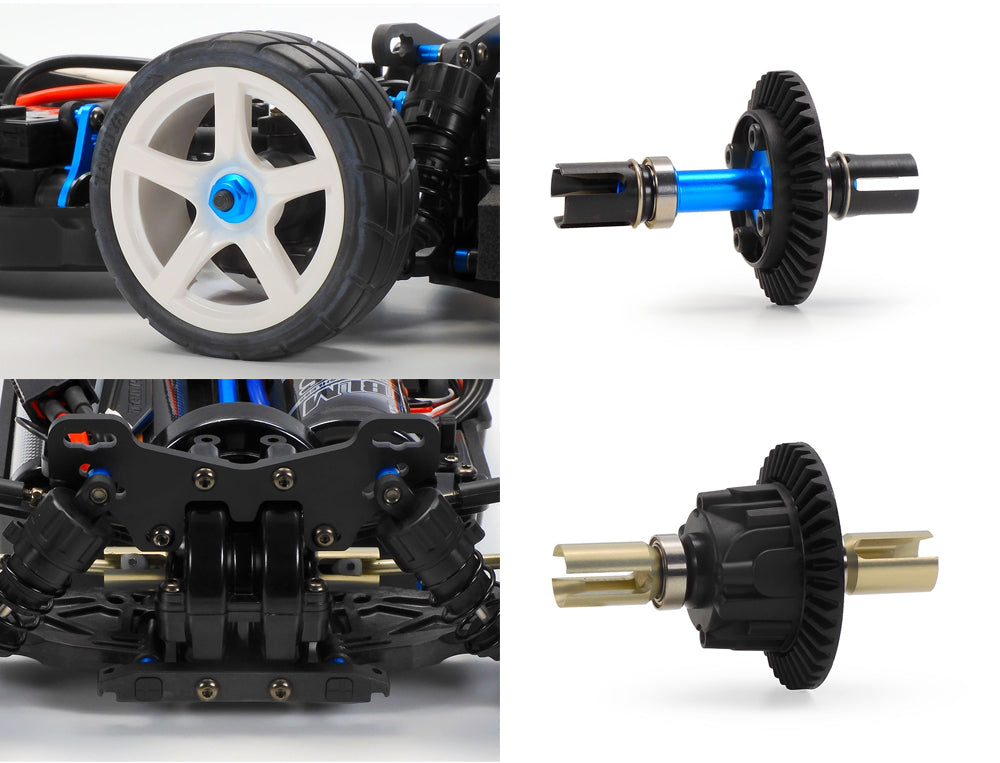

- The front direct coupling gives stable handling, and here is paired with durable, dedicated joint cups.
- An aluminum propeller shaft is joined by propeller joints designed especially for use with the included plastic anti-wear caps.
- The rear oil gear differential features lightweight yet durable aluminum joint cups.
- The rear suspension setup can be altered using plastic bushings in the mount, fine-tuning toe and skid angles.
- Rear 39mm drive shafts have been given a low-friction, highly durable hard coating.
- Dampers have 6 upper and 3 lower attachment position options.
- 5-spoke wheels are paired with blue anodized 4mm flanged lock n
