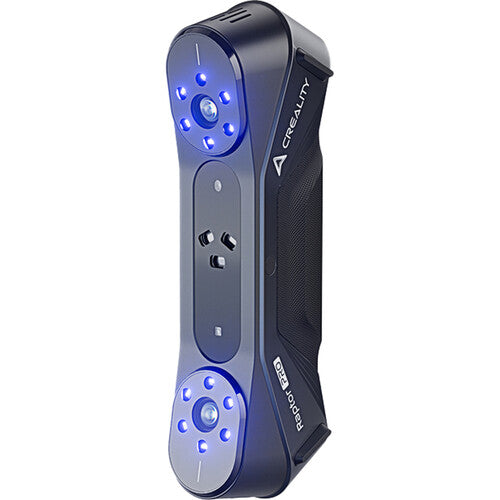

Creality 3D Scanner Raptor Pro for Automotive & Engineering Projects with Metrology-Grade 0.02mm Accuracy

Creality 3D Scanner Raptor Pro for Automotive & Engineering Projects with Metrology-Grade 0.02mm Accuracy,22+7 Blue Laser, Up to 60FPS Scanning Speed

• Engineered for Precision and Scale：The scanner employs 22 cross laser lines and 7 parallel blue laser lines to efficiently capture data from medium to large objects. 22 Cross lines is for medium and large objects, while 7 Parallel Laser is for small objects.The cross laser lines enable quick and comprehensive coverage, significantly reducing the need for multiple passes during scans of larger items. Each blue laser is only 0.1mm thick, and a single 7-line blue laser can capture an accuracy of 0.02mm. Whether scanning the intricate components of a modified engine part or the expansive curves of a custom car body, you can expect metrology-grade accuracy from this unique laser configuration
• Fast Scanning: Its blue laser line mode can capture data at up to 60 frames per second (fps) and process 660,000 points per second—a feature that significantly cuts down on scanning times. The NIR mode, while slightly slower at 30fps, still offers rapid scanning, particularly beneficial when a balance between speed and detail is required. This speed is not just a luxury; in dynamic fields like automotive modification, where iterative design and testing are common, the ability to quickly capture and analyze scan data can accelerate the design process and improve overall workflow efficiency
• Anti-Shaking Design：Equipped with One-Shot 3D imaging technology, the Raptor Pro minimizes tracking loss and provides a stable scanning experience—even when used in handheld mode. The built-in anti-shaking features, along with fast backtracking, ensure that users can move around larger objects or work in environments where stability may be a concern without compromising data quality
• Innovative Software：Creality has taken care to provide a robust solution with the CrealityScan app. Designed with both ease of use and professional features in mind, the software includes step-by-step tutorials, one-click model processing, and advanced editing tools that simplify the entire scanning process—from initial capture to final model refinement. Key functionalities such as point cloud editing, global marker scanning, and dedicated face and body modes (which enable rapid human body scans in as little as two minutes) highlight the software’s versatility.
• Built for Versatility and Adaptability：Weighing just 405 grams, its lightweight and portable build makes it ideal for both in-lab and on-site scanning tasks. The device features a robust metal lens barrel and holder, along with a 2.3-million pixel imaging camera and a low distortion lens system, ensuring that every scan is both accurate and detailed.Environmental adaptability is another strong suit. The blue laser system is designed to withstand outdoor conditions with strong environmental resistance, while the dual lighting system—blue light for supplementary laser line scanning and white light for enhanced texture brightness—ensures consistent performance in varying light conditions
• Seamless Integration：The Creality Scan software also supports seamless integration with popular 3D inspection and design tools like Geomagic Control X, Geomagic Design X, and Verisurf Inspect. This compatibility ensures that once the scanning process is complete, users can easily transition their data into further workflows—whether that’s for reverse engineering, quality control, or even direct 3D printing.
• Compter Requirements: Recommend the following configuration or higher: Windows: i7-Gen10 CPU, Nvidia graphics card ( 8 GB Video RAM), 32 GB RAM, Windows 10/11(64bit). Minimum Configuration: i7-Gen7 CPU, Nvidia graphics card (6 GB Video RAM),16GB RAM, Windows 10/11(64bit). macOs: Recommend M1/M2/M3 series processors and 16GB RAM

Product Details
