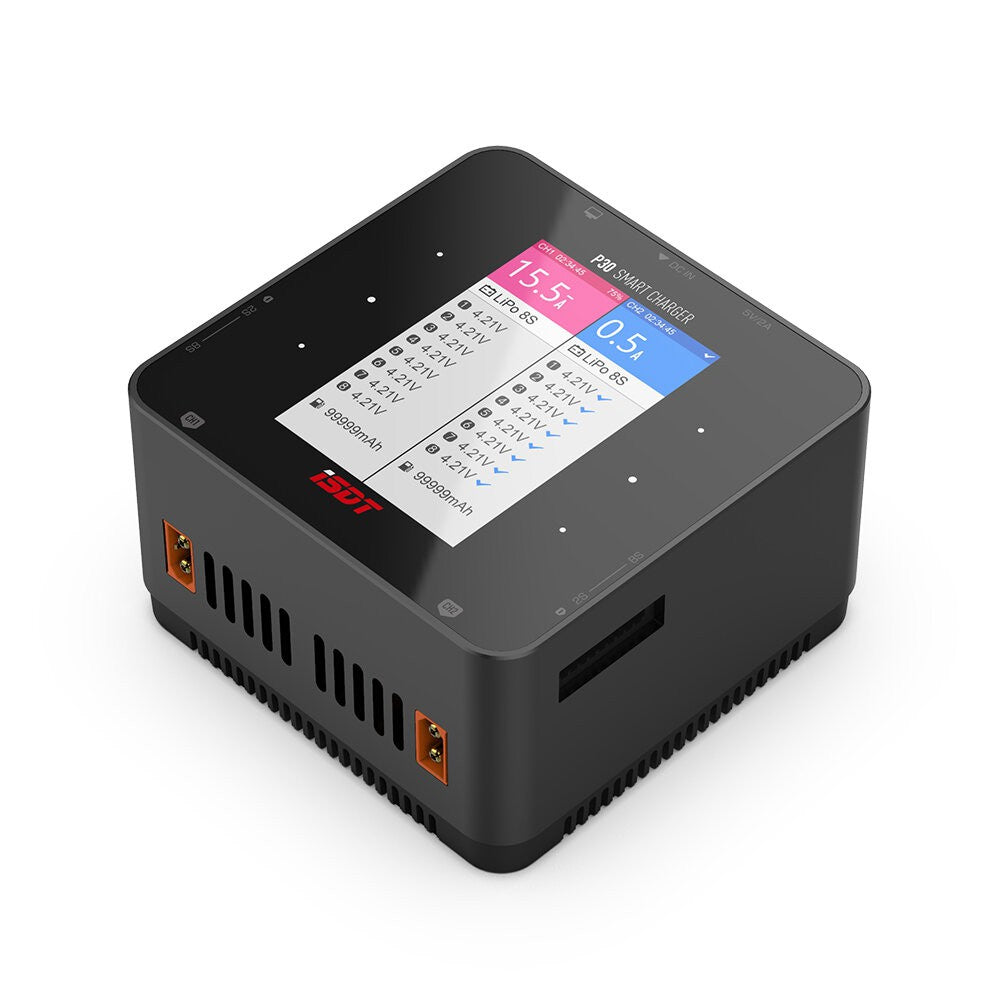

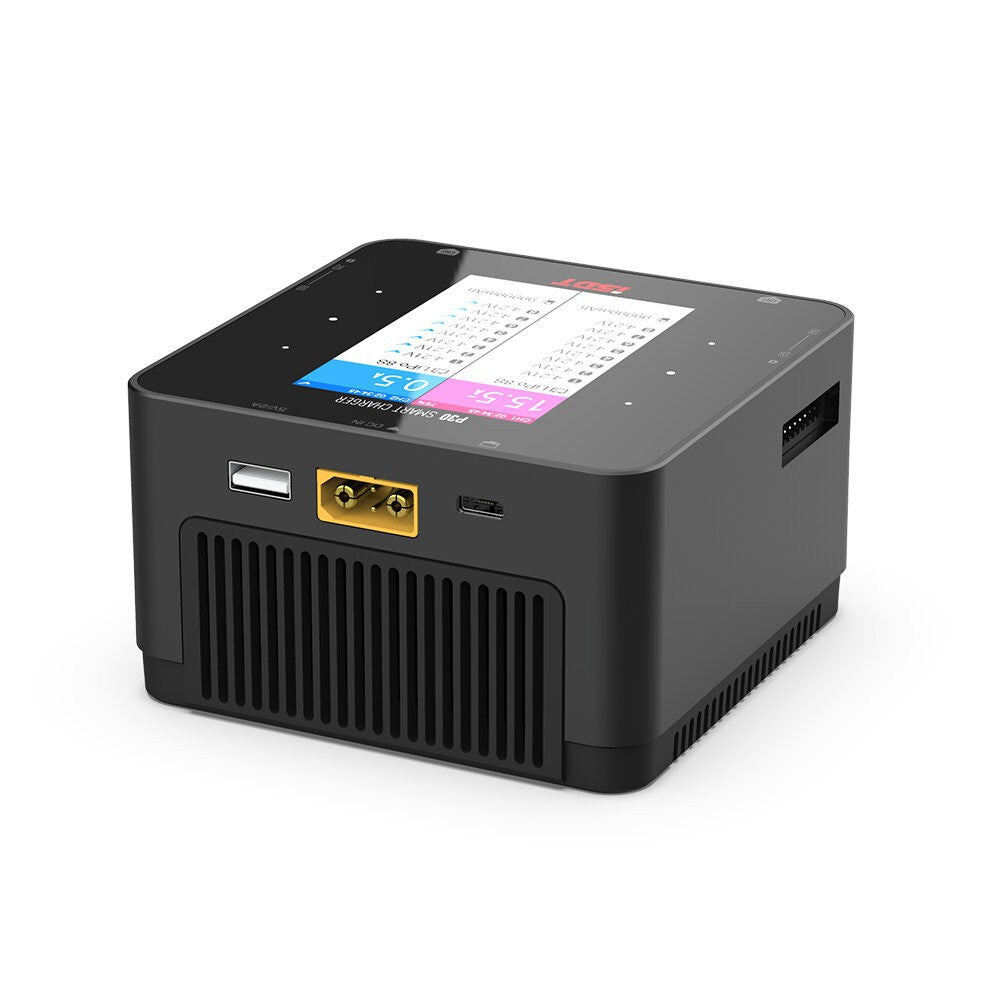

The first heavyweight charger from ISDT, the P30 is a dual-channel 8S charger capable of 1500W of output.
Each channel can operate independently, putting out a maximum of 30A, or you can combine the two channels in parallel for synchronous balance charging at up to 50A!
True to ISDT's tradition, this charger has been engineered to be as small and light as possible, with advanced air convection design and a solid magnesium alloy shell providing effective cooling even in such a small package.
The 3.5" high-resolution IPS display provides a wealth of information about your batteries, with even more options available with the BattGO system and the ISDT app which connects wirelessly via Bluetooth.
Features
High Power Synchronous Dual Channel, with Smart Charging.
- A smart high-speed processor delivers parameter interfere to each port.
- Hassle-free with a maximum charging power up to 1000W for each port.
- Choose ISDT, Powered by Innovation.
Synchronous Parallel charging.
- Built-in High-Speed Processor Synchronous Balance two-channel charging.
- Maximum Parallel Charging power up to 1500W.
- P30 deliver charging current range from 30A ~ 50A.
High-Quality Lightweight Magnesium Alloy shell.
- Anodized magnesium alloy shell.
- Premium high gloss thin lines finishing by edge’s chamfering process.
- A unique appearance featuring a high-efficiency heat dissipation design.

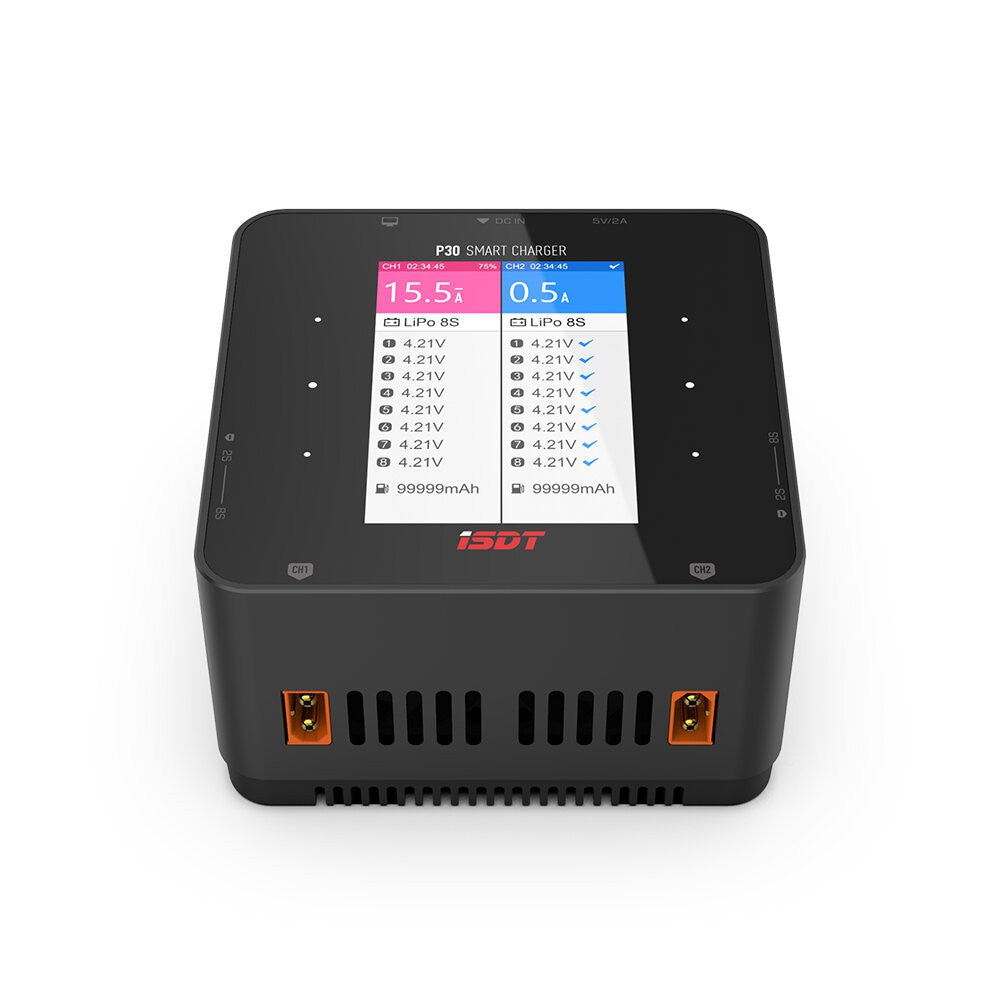

3.5-inch High resolution IPS screen.
- The screen provides a 320 x 480 resolution.
- Displays detailed information including current, capacity, internal resistance, and more.
New Air Convection Design for Effective cooling.
- The internal structure improves the heat dissipation channel rate.
- The internal structure improves the heat dissipation channel rate.
- Greatly improve heat dissipation.
P30 supports Bluetooth Connect Function and Mobile Operations.
- Wireless OTA upgrade with APP support.
- BattGO supports; Battery voltage, Internal Resistances, Firmware upgrade, and more.
- Preset charging tasks are available. Simply One-button charging, Hassle-Free.
Powerful Performance built-in compact size.
- Seeking Ultimate Power ratio with Perfect Balance.
- Constantly pursue perfection with innovation inspire our customer.
Specifications
- Input voltage: DC 10~34V
- Output voltage: DC 1~34V
- Max. input current: 60A
- Charging current: 0.2~30A x2
- Discharging current: 0.2~3.0A x2
- Balance current: 1.5A/Cell Max
- Max. discharging power: 30W x2
- Max. discharging power: Single channel Max. 1000W; Whole model Max. 1500W
- Abnormal voltage alarm: support
- Incorrect cell count setting alarm: support
- Supported battery types and cell count: LiFe, Lilon, LiPo 1~8S, LiHv 1-7S, Pb 1-12S, NiMH, Cd 1-16S
- Output interface: XT60i（XT60 compatible）
- Input interface:: XT90i（XT90 compatible）
- Display: 3.5’’ 320×480 IPS LCD
- Working temperature: 0~40℃
- Storage temperature: -20℃~60℃
- Dimension: 110x110x65mm
- Weight: 730g
Includes
- iSDT P30 1500W 50A 8S Dual Port Smart Charger
