Powerhobby 7075 Aluminum Roto Lock Dual Motor Mount FOR Hobao VTE VTE2 GTB
Description
Powerhobby 7075 Aluminum Motor Mounts provide a strong and adjustable upgrade for compatible HoBao speed-run and on-road RC vehicles. These mounts are designed to improve motor support while allowing precise pinion-and-spur gear-mesh adjustment for stock and high-performance power systems.
Choose from a single Roto Lock motor mount, a Grubloc motor mount kit with spool mount, or a dual-motor Roto Lock setup. Motor-size compatibility, gear ranges and installation requirements vary by version.
Features
- CNC-machined 7075 aluminum construction
- Adjustable pinion-and-spur gear mesh
- Supports multiple motor mounting-hole patterns
- Compatible with large-diameter brushless motors
- Strong motor support for high-power applications
- Suitable for speed-run and high-performance builds
- Single- and dual-motor options available
- Designed for compatible HoBao VTE-series vehicles
- Brand new and factory sealed
Available Versions
PHB6245 – 7075 Aluminum Roto Lock Single Motor Mount
- Single-motor Roto Lock design
- Fits motors with 25mm, 25.4mm or 30mm mounting-hole spacing
- Supports motors measuring up to 58mm in diameter
-
Fits:
- HoBao VTE
- HoBao VTE2
- HoBao GTB
- 30mm motor spacing supports a combined pinion-and-spur count of approximately 72–90 teeth
- 25mm motor spacing supports a combined pinion-and-spur count of approximately 66–94 teeth
- HoBao VTE2 top brace requires two 3mm installation holes
- Recommended for use with center spools
- Part Number: PHB6245
PHB5727 – 7075 Aluminum Grubloc Motor Mount Kit
- Complete motor-mount and spool-mount kit
- Fits motors with 25mm or 30mm mounting-hole spacing
- Supports motors measuring up to 58mm in diameter
- Designed for the HoBao VTE2
- 25mm motor spacing supports a combined pinion-and-spur count of approximately 60–91 teeth
- 30mm motor spacing supports a combined pinion-and-spur count of approximately 60–91 teeth
- Includes the motor mount and spool mount
- Part Number: PHB5727
- Barcode: 659821456833

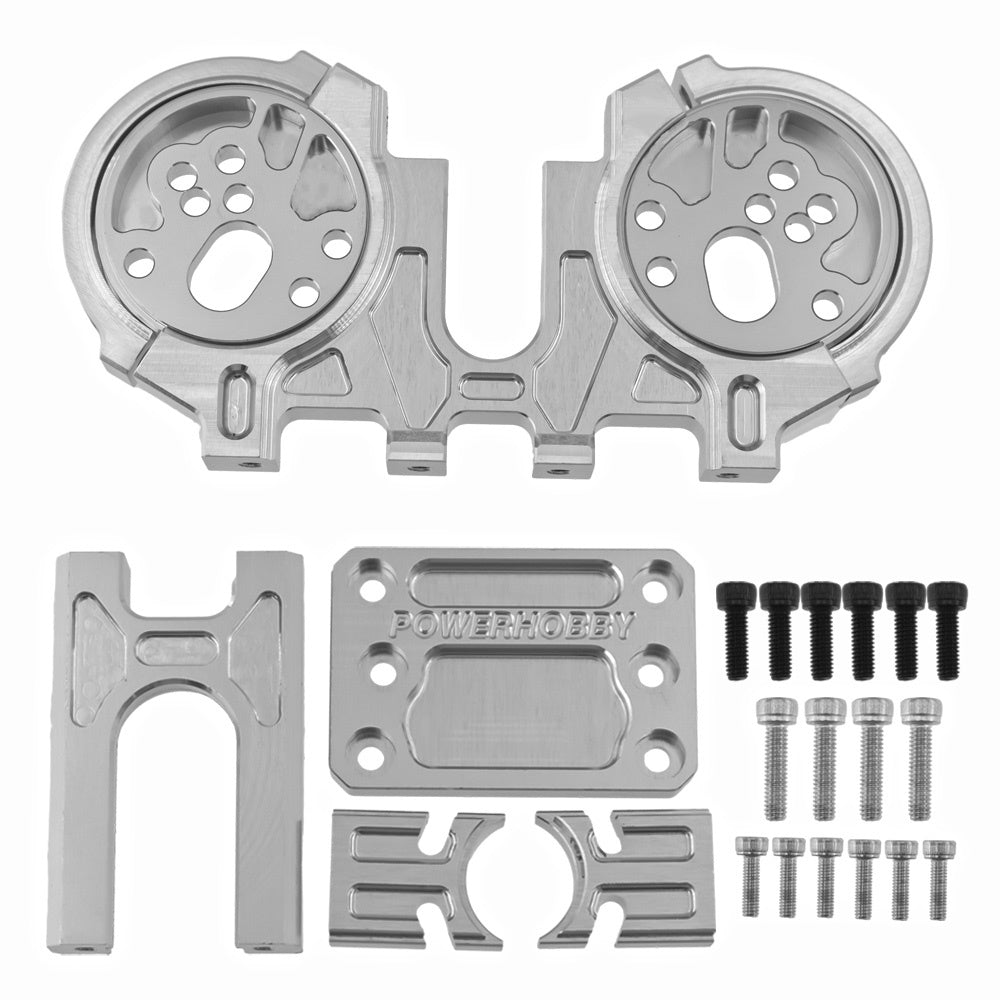

PHB6244 – 7075 Aluminum Roto Lock Dual Motor Mount
- Dual-motor Roto Lock design
- Fits motors with 25mm, 25.4mm or 30mm mounting-hole spacing
- Supports motors measuring up to 60mm in diameter
-
Fits:
- HoBao VTE
- HoBao VTE2
- HoBao GTB
- 30mm motor spacing supports a combined pinion-and-spur count of approximately 72–90 teeth
- 25mm motor spacing supports a combined pinion-and-spur count of approximately 66–94 teeth
- HoBao VTE2 top brace requires two 3mm installation holes
- Recommended for use with center spools
- Designed for custom dual-motor speed-run builds
- Part Number: PHB6244
Specifications
- Brand: Powerhobby
- Product Type: Adjustable Motor Mount
- Material: 7075 Aluminum
- Motor Mounting Patterns: 25mm, 25.4mm or 30mm, depending on version
- Maximum Motor Diameter: 58mm or 60mm, depending on version
- Motor Configuration: Single or Dual
- Vehicle Compatibility: Varies by selected part number
Fits
Depending on the selected version:
- HoBao VTE
- HoBao VTE2
- HoBao GTB
PHB5727 is specifically designed for the HoBao VTE2. PHB6245 and PHB6244 are listed for the HoBao VTE, VTE2 and GTB.
Installation Notes
- Confirm the motor mounting-hole spacing before ordering.
- Confirm the motor’s outside diameter.
- Verify the combined pinion-and-spur tooth count.
- PHB6244 and PHB6245 require two 3mm holes in the HoBao VTE2 top brace.
- Center spools are recommended with the Roto Lock versions.
- The dual-motor mount is intended for experienced builders and custom high-power setups.
- Additional chassis or electronic modifications may be required for dual-motor installation.
Includes
PHB6245
- One Powerhobby Roto Lock single motor mount
- Installation hardware shown
PHB5727
- One Powerhobby Grubloc motor mount
- One spool mount
- Installation hardware shown
PHB6244
- One Powerhobby Roto Lock dual motor mount
- Installation hardware shown
Motors, ESCs, pinion gears, spur gears and center spools are not included.
