Tekin - RSXpro ESC - 5.5 Gen4 Sensored BL Combo Motor System

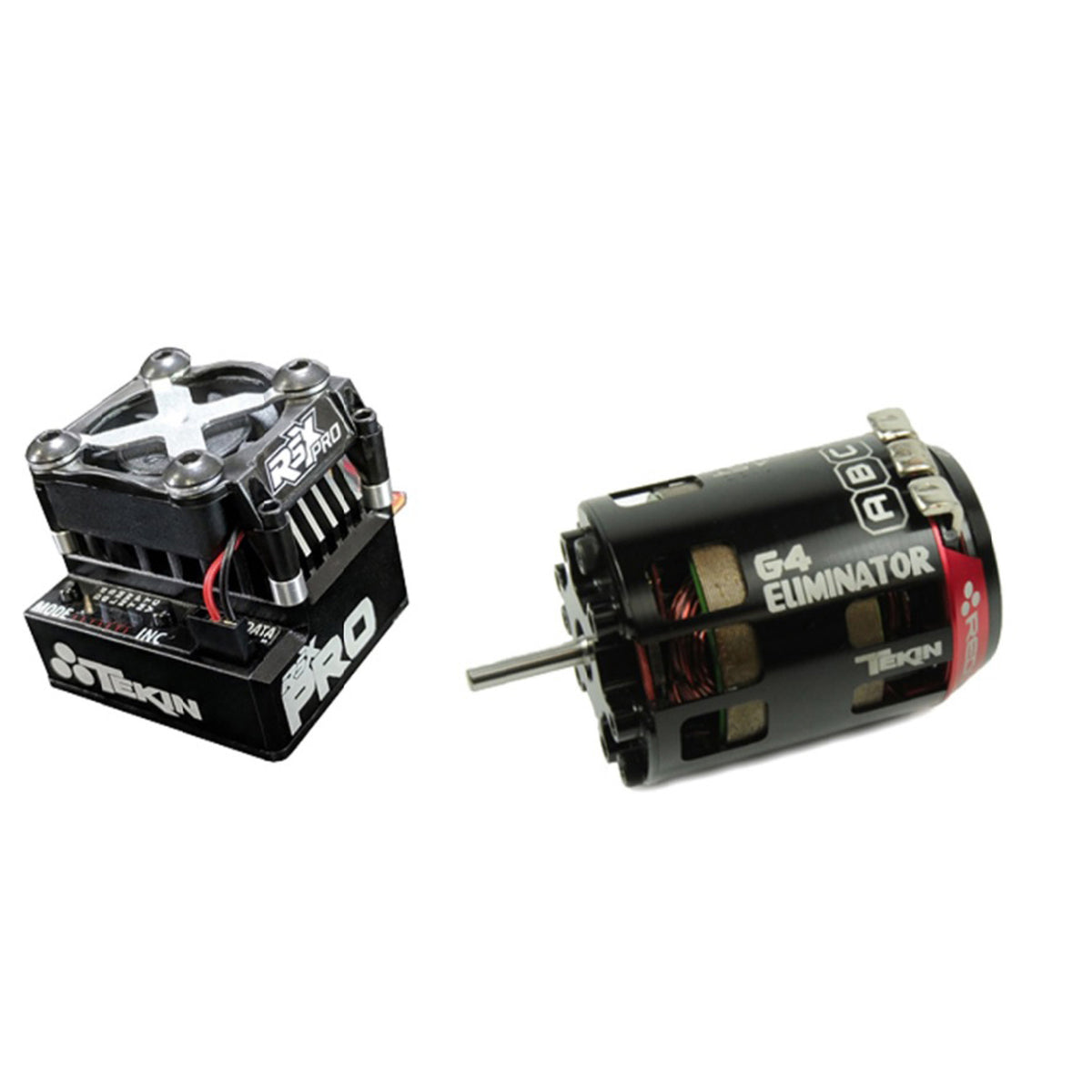

TT2803 RSX PRO / GEN4 5.5T Motor System

This system combines the Tekin RSX PRO electronic speed control with a GEN4 5.5T sensored brushless motor for modified R/C racing.

Battery compatibility: The included 5.5T motor is rated for 1S–2S LiPo/LiHV (4.2–8.7V). Do not use a 3S battery with this motor. The ESC specifications below describe the ESC separately.

Included GEN4 5.5T motor

• Rebuildable motor with a machined aluminum can.
• Weight: 145g.
• Diameter: 35.85mm; length: 50.25mm.
• Shaft diameter: 3.18mm.
• Maximum operating temperature: 82°C / 180°F.

RSX PRO ESC details

The RSX PRO is Tekin's premiere modified racing Electronic Speed Control. Using only the best available components and materials, this ESC is performance defined. Bred for 1:10th scale modified competition, the RSX PRO gives you maximum power with precise control and reliability. With a highly efficient aluminum heat sink housing and an entire array of adjustable features, you have the ability to fine-tune the RSX PRO's massive power for the win.

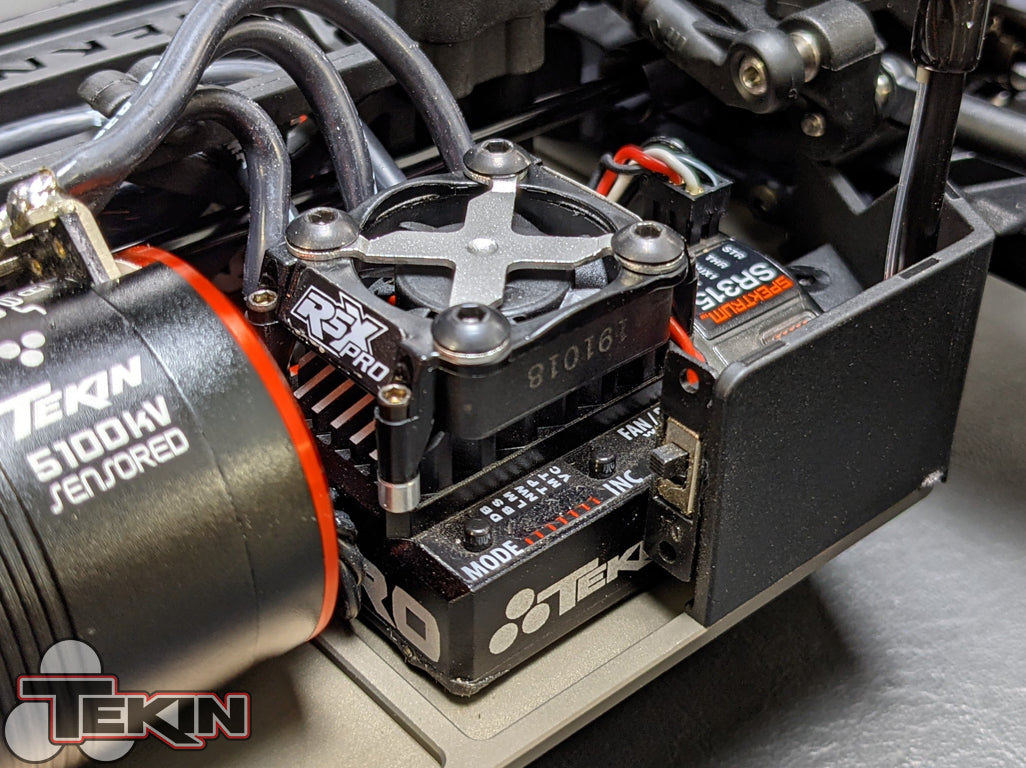

Included with the RSX PRO is a detachable fan shroud system for maximum cooling in extreme racing conditions. Data Logging, a High Voltage HD Internal BEC and optional 3rd Channel Drag Brake Adjustment come standard as well as access to Team Driver setups. Take your racing program to the next level with the Tekin RSX PRO.

Specs:

Controls: Forward/Brake/Reverse

Input Voltage: 2S-3S LiPo / 4-12S NiMH-NiCD

Motor Limit Brushless Mode: 2S Drag Racing - 3.5T 2-pole 36mm Can

                                                    2S Track Racing - 3.5T 2-pole 36mm Can

Motor Limit Brushed Mode: 2S - 6 Turn 36mm Can

                                                3S - 12 Turn 36mm Can

Max Current: 210amps per phase*

HV Adjustable BEC: 6.0v / 7.4v @ 5.5amps

Dimensions: 1.21 x 1.43 x .82" / 31.2 x 37.2 x 21mm

Weight: 1.4oz / 40g

*per FET manufacturer specs

OFF ROAD

 1:10 2WD Buggy

 1:10 2WD Truck

 1:10 2WD Short Course

 1:10 4WD Buggy

ON ROAD

 1:12 2WD Pan Car

 1:10 2WD Pan Car

 1:10 World GT

 1:10 2WD Formula 1

 1:10 4WD Touring Car

OVAL

 1:10 2WD

 1:10 SK Car

 1:10 Stock Car

 1:10 Winged Sprint

Features:

 Bluetooth Wireless Mobile and USB PC Tuning with the HotWire 3.0
 Billet 6061-T6 Aluminum Heat Sink Housing
 NEW FET Package

 NEW HD Easy Solder Posts

 Optional Shroud and High RPM Cooling Fan
 3rd Channel Input for On-The-Fly Drag Brake Adjustments <<setup>>

 ROAR Approved Blinky Drive Mode
 QuickTune™ One Touch Programming
 Adjustable Torque Control *
 Adjustable Throttle and Brake Frequencies *

 HD High Voltage Programmable BEC *
 HotWire™ Programming Port *

 On-the-fly Drag Brake Adjustment
 Data Logging Capability *
 Sensor Checker
 On-Board Temperature Indicator

 ESC Self Diagnostics with Error Codes
 Fully Proportional Forward/Brake/Reverse

 Brushless and Brushed Motor Drive

 Sensored or Sensorless Operation

 LiPo Safe with Custom Voltage Cutoffs

 Sensor Plug for Precise Commutation

 HDAC: High Density Copper PCB's
 Ultra-smooth and Precise Throttle and Braking Control

* requires HotWire™ sold separately.

ON BOARD QuickTune™ PROGRAMMABLE FEATURES

 DB - Drag Brake (13 steps)

 BS - Brake Strength (13 steps)

 LM - Torque Limiter (7 steps)

 NW - Neutral Width (13 steps)

 TP - Timing Profiles 5 Preset - 2 Custom*

 MT - Motor Type

Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction

Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay

 VC - Voltage Cutoff : 2S, 3S, Custom*

* requires HotWire™ sold separately.
